Recombiner

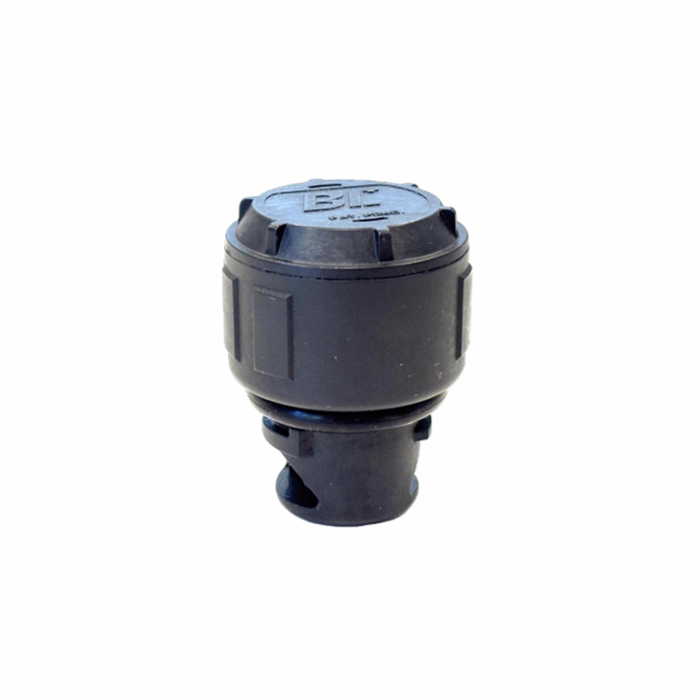

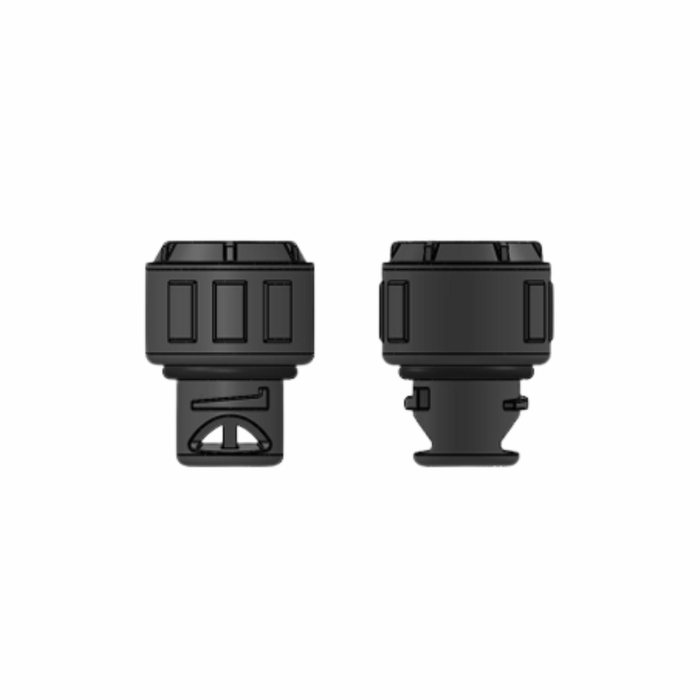

RECOM-S
The RECOM-S system is engineered specifically for vented nickel-cadmium, nickel-iron, and lead-acid stationary battery cells, offering a remarkable solution to prevent water loss and reduce maintenance. The advanced design recombines the hydrogen and oxygen gases into water before these gases escape the cell, resulting in a nearly maintenance-free battery.
| Specification | Details |
|---|---|
| Gas Recombination Rate | 114 ±10 cc/min (H₂ & O₂) |
| Max / Min Operating Temperature | 90°C (194°F) / 0°C (32°F) |
| Max Unit Material Temperature | 274°C (525°F) |
| Battery Capacity Rating | 0–4000 Ah |
| Application | Stationary Flooded / Vented Batteries |
| Diameter | 38 mm (1.50”) |
| Height Above Vent | 31 mm (1.23”) |

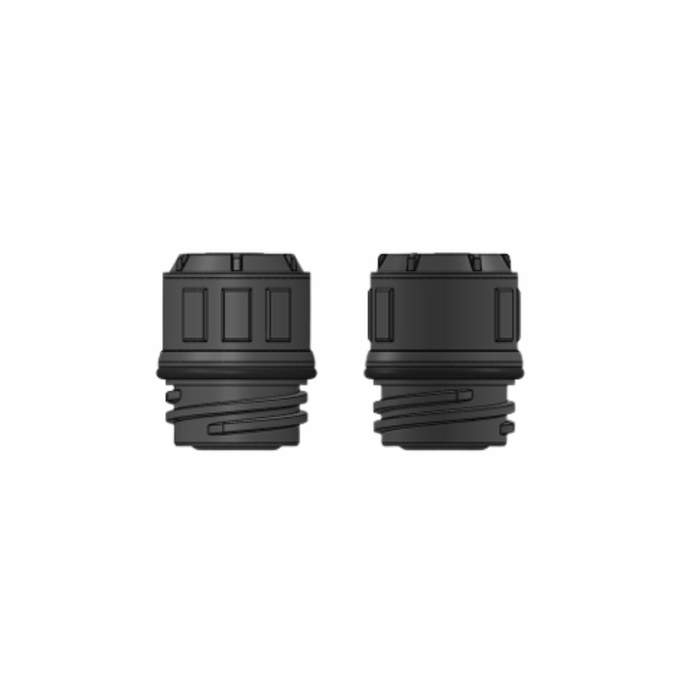

RECOM-S-T
The RECOM-S-T system is engineered specifically for vented nickel-cadmium, and lead-acid stationary battery cells with a threaded vent opening, offering a remarkable solution to prevent water loss and reduce maintenance. The advanced design recombines the hydrogen and oxygen gases into water before these gases escape the cell, resulting in a nearly maintenance-free battery.
| Specification | Details |
|---|---|
| Gas Recombination Rate | 114 ±10 cc/min (H₂ & O₂) |
| Max / Min Operating Temperature | 90°C (194°F) / 0°C (32°F) |
| Max Unit Material Temperature | 274°C (525°F) |
| Battery Capacity Rating | 0–4000 Ah |
| Application | Stationary Flooded / Vented Batteries |
| Diameter | 41 mm (1.60”) |
| Height Above Vent | 29 mm (1.15”) |
RECOM’s 99%+ efficiency in water retention means that cells may only require watering every five years, or even less frequently, depending on the applications. This innovation
provides flooded batteries with virtually zero watering maintenance and reduces the time technicians are exposed to the battery hazards.
