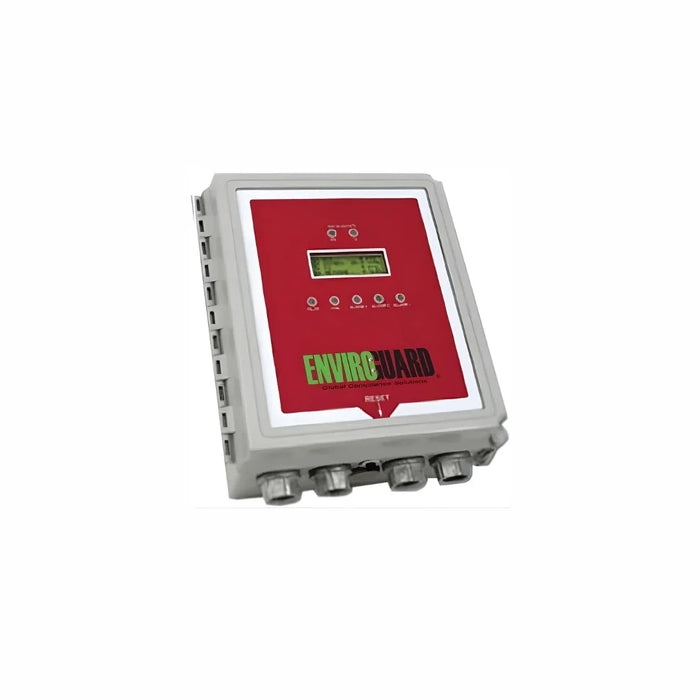

Deluxe Hydrogen Gas Monitor

Monitor the level of hydrogen gas that may be present in your battery room or facility with a deluxe hydrogen gas monitor- two models available and both are wall mounted and UL listed. Optional calibration kits available on both models.

Deluxe Two Channel Hydrogen Gas Monitor

Features

• Explosion-proof housing and sensor design
• Hydrogen-specific catalytic sensor
• Simultaneous readout on 2 channels
• Two programmable alarm levels per channel
• Discrete and common relays
• Built-in audible alarm
• Easy to install, operate, and expand
• Proven, long-life sensors, for a wide variety of gases
• Available bundled with sensor
• Optional calibration kit available

Part Number

• HYD-2C

Regulations In Compliance With

• CSA, C/US Classified

Specifications

• Power: 115 & 220 VAC or 24 VDC standard
• Enclosure: NEMA-4x
• Dimensions: 8.5"w 10.5"h x 6.3"d
• Outputs: 4-20mA signal output
• Audible alarm: 94 dB
• Sensor: Hydrogen Specific
• Inputs: 4-20 mA transmitter (24 VDC, 2 or 3 wire).

Deluxe Four Channel Hydrogen Gas Monitor

Features

• Explosion-proof housing and sensor design
• Hydrogen-specific catalytic sensor
• Simultaneous readout on 2 channels
• Two alarm levels per channel
• Discrete and common relays
• Built-in audible alarm
• Easy to install, operate, and expand
• Proven, long-life sensors, for a wide variety of gases
• Available bundled with sensor(s)
• Optional calibration kit available

Part Number

• HYD-4C

Regulations In Compliance With

• CSA, C/US Classified
• ANSI/ISA S82.01

Specifications

• Power: 115 & 220 VAC or 24 VDC standard
• Enclosure: NEMA-4x
• Dimensions: 10"w 12"h x 6.3"d
• Inputs: accepts any 4-20 mA sensor
• Wiring distances up to 8,000 feet
• Audible alarm: 94 dB
• Output: 4-20 mA signal output; modbus format RS-485 serial output
