Broadband High Temp AGM Battery
Dependable emergency and standby power when you need it most.
Engineered for consistent output and extended operational life in tough industrial settings.
Ideal for mission-critical applications including:
UPS systems
Telecom networks
Data centers
Power utilities
Emergency response systems
Switchgear equipment
Critical DC power infrastructure
Will This Fit My Application?
✅ 12V sealed lead‑acid (VRLA AGM) telecom battery
✅ Designed for telecommunications network backup and broadband applications
Need Help Confirming Fit?
Send us your system specs or battery model, and we’ll help verify compatibility.
📩 sales@powRparts.com
Trusted Support
✔ Application sizing & compatibility guidance
✔ Fast nationwide shipping
✔ Industrial battery experts
✔ Responsive customer support
✔ 30‑day easy returns

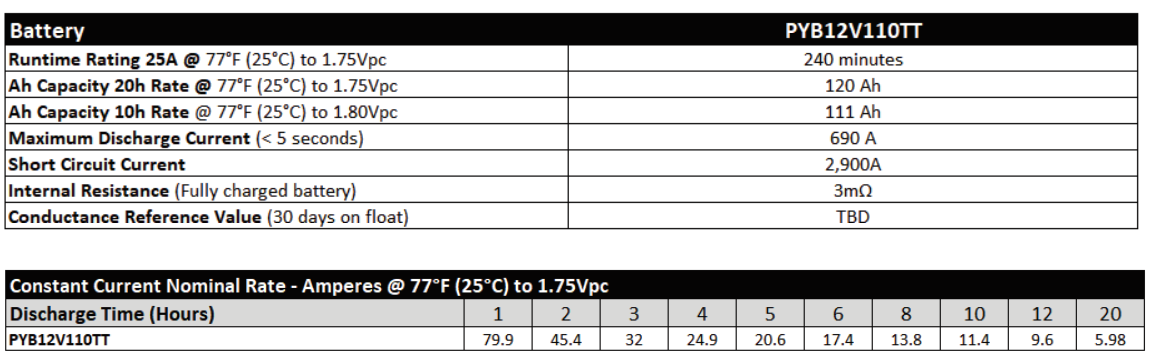

Battery Specifications
| Specification | Details |
|---|---|
| Operating Temperature Range (w/ Temp Compensation) |
-40 to 149°F / -40 to 65°C (Charger temp comp @ ±3 mV/°C per cell)
|
| Storage Temperature |
5 to 113°F / -15 to 45°C
|
| Self Discharge |
Storage up to 12 months @ 77°F (25°C)
|
| Voltage per Unit |
12V
|
| Float Charge Voltage |
13.65V ± 0.15V @ 77°F (25°C)
|
| Refresh/Boost Charge Voltage |
14.4V – 15.0V @ 77°F (25°C)
|
| Terminal Type |
M8 Threaded Insert
|
| Terminal Hardware Torque |
105 in-lb / 11.9 Nm
|
| Case Size | 31 |

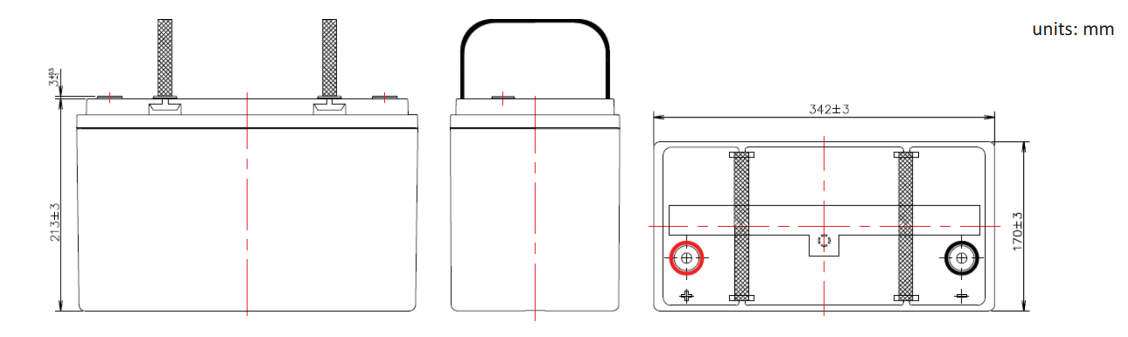

| Dimensions |
8.5 x 13.5 x 6.7 in. / 216 x 342 x 170 mm
|
| Weight |
81.6 lbs. / 37 kg
|
| Application | Broadband, Telecom networks, UPS systems, backup power |

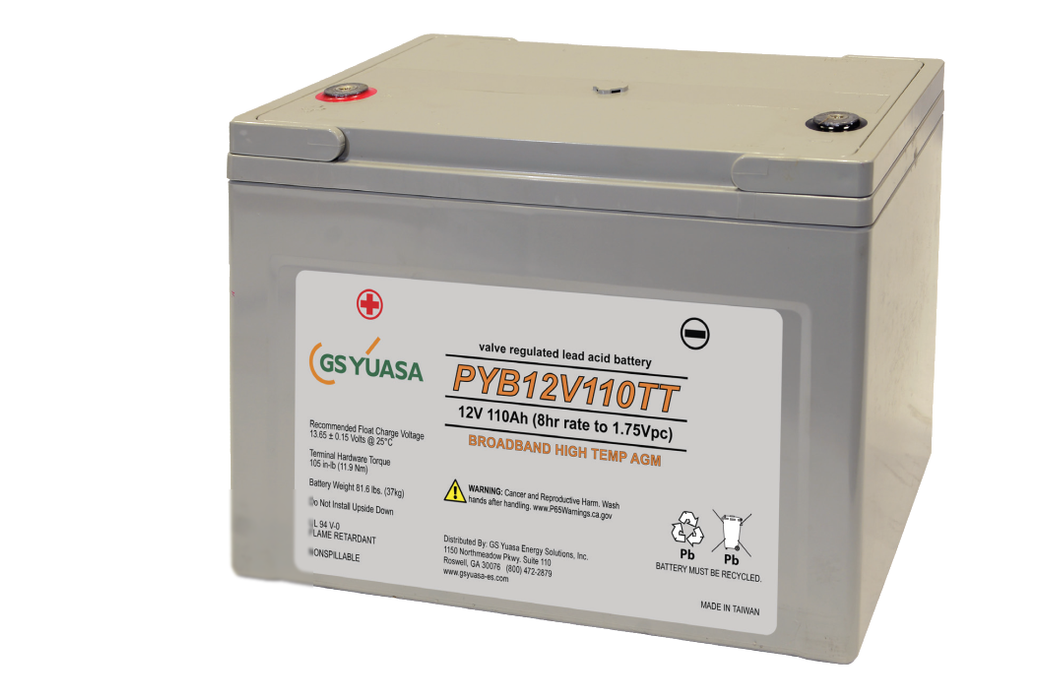

BROADBAND HIGH TEMP AGM BATTERY
• HT X Alloy™ Primary lead for long life
• Additives to maintain compression
• Designed to control charging current as temperature increases
• No thermal runaway
• Epoxy sealed terminals to prevent post leaks
• Rugged ABS cases to minimize handling damage
• AGM technology enables spill proof operation
• High gas recombination efficiency
10+ YEAR DESIGN LIFE
• Exceeds Telcordia GR-1200 criteria
• Greater than 5 years at 35 degrees C
COMPLIANCE
• GR-4228
• GR-1089
• GR-63 NEBS
SAFETY
• UL 94V-0
• UL 1989
