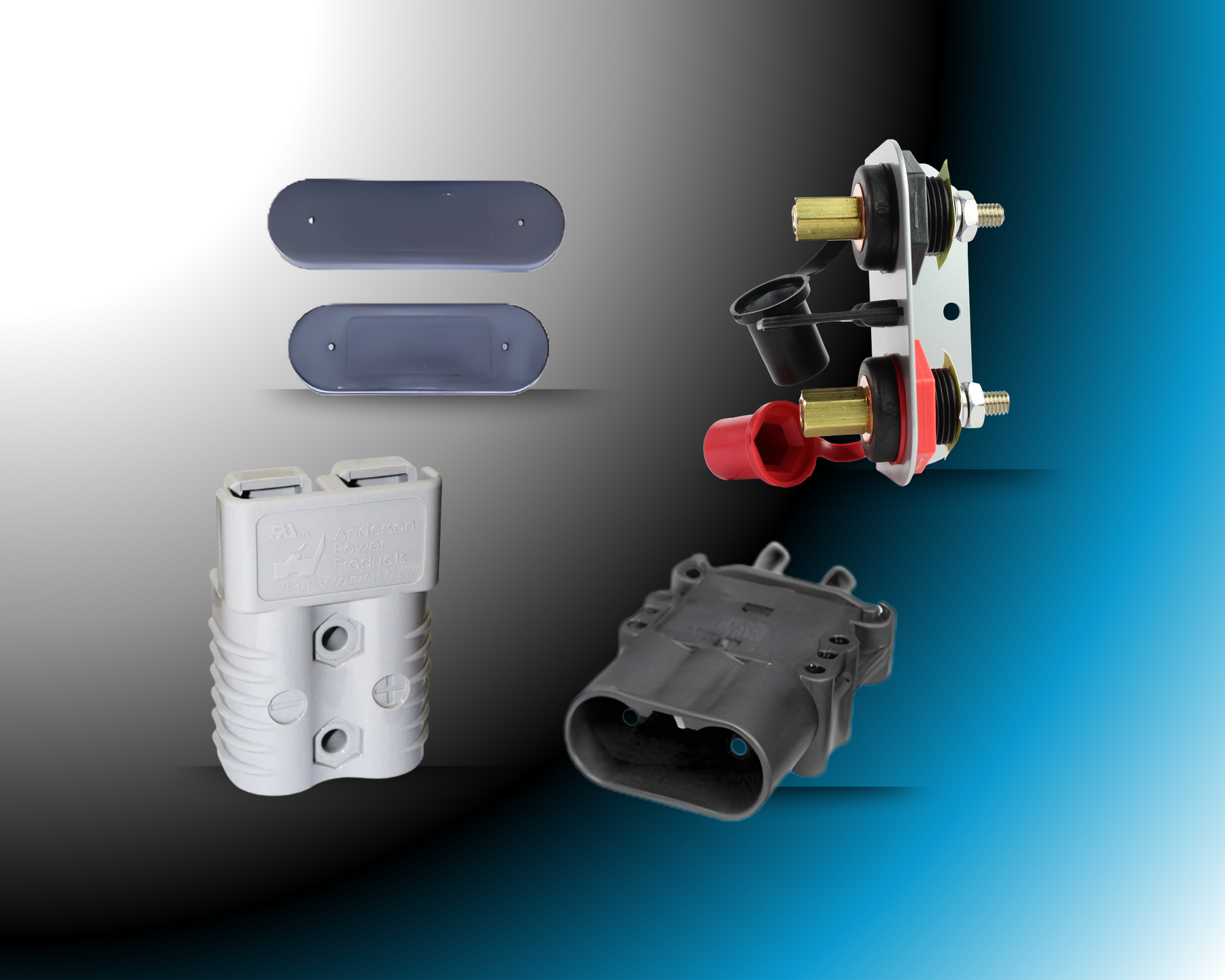

How To Select The Right Battery Connector

At PowRparts we know that choosing the correct connector isn’t just a detail—it’s critical for safety, performance, and long-term reliability in industrial battery systems. Below we walk through several of the most frequently used connector types in our inventory, what makes each unique, and how to choose the right one for your application.

1. SB Series Connectors (e.g., 50 A, 175 A, 350 A)

Connector Type: SB 50 Amp Gray Connector (and similarly, SB 175, SB 350)
Overview: These are gender-less, high-current DC power connectors used widely in forklifts, industrial battery banks, uninterrupted power supplies, and other heavy-duty equipment. At PowRparts we list SB50, SB175 and SB350 variants.

Key features:

• Color-coded housings (gray, red, blue, green, yellow, orange) and mechanically keyed to prevent mismatched voltage or incompatible connections.
• Genderless design: the two halves of the connector are identical, simplifying installation.
• High current ratings: the SB350 in particular is designed for very high current demands.
When to use:
• You have equipment like large forklifts or battery systems requiring significant current capacity.
• You need a robust, frequently connected/disconnected power hook-up point.

Installation tip:

• Match the connector rating (50A, 175A, 350A) to your system’s amperage and cable gauge.
• Ensure housing color and contacts match your existing system to avoid mismatch.
• Crimp or install the contacts per specification; genderless designs simplify the mating side.

Why it matters: A mismatch in amperage or connector style can lead to overheating, failure, or unsafe conditions.

🔌 SB Battery Connector Comparison Chart

2. DIN / Euro Connectors

Connector Type: DIN 160 Amp Connector Kit (and variants like DIN 320A)
Overview: These connectors follow the DIN / Euro standard style and are built for popular industrial equipment (forklifts, AGVs, battery rooms, pallet jacks) as described in our “DIN And Euro Connectors & Accessories” collection.

Key features:

• Standardized mounting/format in European-industrial environments.
• Often come as full kits (housing, contacts, mounting provisions).When to use:
• Your equipment manual or existing connector uses the DIN style.
• You’re working in a facility with European standard battery systems or replacement parts.

Installation tip:

• Check the amperage rating (e.g., 160 A, 320 A) to match your load.
• Ensure mounting geometry and panel cut-outs align with the kit.
• Follow wiring and torque specs for the contacts and housing.

Why it matters: Standardization ensures compatibility and reduces downtime when replacing or upgrading connectors.

3. Inter-Cell Connectors

Connector Type: Intercell Connector 3″ Center‑to‑Center
Overview: These connectors are used to link individual battery cells (within a battery block or battery bank) rather than external hook-ups. They’re particularly useful in forklift battery systems or any multi-cell battery configurations. Our collection offers sizes like 3”, 3⅛”, 3½”, and 5” center-to-center to match various battery post spacings.

Key features:

• Precise sizing for cell-to-cell spacing ensures minimal contact resistance and secure fit.
• Heavy-duty copper or alloy material designed for high-capacity, high-current links.

When to use:

• You’re rebuilding or maintaining large lead-acid or industrial battery banks.
• You need to directly connect adjacent cells rather than external power leads.

Installation tip:

• Measure the distance between posts (center to center) and select the correct connector size.
• Ensure proper torque and contact surface preparation for low resistance.
• Inspect for corrosion or wear during maintenance intervals.

Why it matters: Poor inter-cell connections can lead to cell imbalance, inefficiency, and early failure in battery systems.


4. Battery Terminal & Fuse Holder Connectors

Connector Type: See the “Battery Terminals & Fuse Holders” collection.
Overview: While less “plug-in” than the above connector types, terminal ends and fuse holder connectors are critical interfaces between batteries and systems (or jump-start setups). Our collection includes a range of sizes and styles to fit small deep-cycle batteries, jump-start cables, or auxiliary connections.

Key features:

• Variety of styles including top-post, side-post, different cable gauges.
• Often include fuse holders for safety or jump-start integration.

When to use:

• For smaller battery systems (e.g., deep-cycle, auxiliary batteries) where the connector is a terminal rather than a heavy-duty plug.
• When you need reliable connection to the battery post or quick-connect jump-start point.

Installation tip:

• Identify whether your battery uses top-post or side-post style.
• Match cable gauge to terminal and ensure secure clamping.
• Inspect periodic-ally for corrosion, tightness, and secure fuse holder contact.

Why it matters: Even smaller battery systems can suffer from high resistance or poor contact if terminals and holders are not properly matched and maintained.


How to Choose the Right Connector: A Quick Checklist

•  Amperage & Cable Gauge – Make sure the connector’s rating matches or exceeds your system’s current draw and the size of your cable. (e.g., SB50 vs SB350)
• Connector Type / Format – Does your equipment specify SB series, DIN/EU style, inter-cell link, or a terminal/fuse holder?
•  Physical Fit / Size – For inter-cell connectors, measure center-to-center post spacing; for plug-in connectors, verify housing size, color code, keying.
• Environment & Duty Cycle – Frequent connect/disconnect? Exposure to harsh conditions? Choose rugged housing and contacts built for industrial duty.
• Installation & Safety – Use proper crimping or torque tools, verify polarity or keyed color, inspect for wear over time, replace if contact surfaces degrade.
• Support & Compatibility – If you’re unsure, our PowRparts team is ready to help match existing connectors or recommend upgrades.


  Why this Matters for Your Operations
• Reliability: A well-matched connector ensures minimal resistance, minimal heat, and consistent power delivery.
• Safety: Mismatched connectors or undersized contacts can lead to overheating, arcing, or failure—posing safety risks and downtime.
• Maintenance Efficiency: When connectors are properly specified and installed, maintenance becomes easier, connections last longer, and replacement is straightforward.
• Cost Savings: Avoid unnecessary replacements, system failures, or inefficiencies by choosing the correct connector the first time.



Final Thoughts

Whether you’re upgrading a forklift battery bank, installing a new industrial UPS, or maintaining a fleet of AGVs, understanding connector types is fundamental. At PowRparts you’ll find the right match—whether it’s the SB series high-current plug, a DIN style kit, an inter-cell link, or the correct terminal/fuse holder for smaller systems.

By following the feature breakdowns and checklist above, you’ll be better equipped to select the appropriate connector with confidence. And if you ever need guidance, our team is on standby. Reach out to sales@powRparts.com with any questions!
